Development

Reference for people working on magus rather than building with it. magus is built and tested by magus: this repository is itself a magus workspace, so the targets, spells, caching, and wards documented for your projects run this one too.

Getting started

Building the magus binary needs only Go. The docs site and WebAssembly playground also need the Node, esbuild, and TinyGo toolchain pinned in mise.toml, which mise installs in one step. From a fresh clone:

git clone https://github.com/egladman/magus
cd magus
mise install
go build -o magus ./cmd/magus
magus run ci

magus run ci builds, formats, lints, and tests every affected project - the same pipeline continuous integration runs. Only need the binary? Go alone is enough; skip mise install and drop the docs and playground targets.

Contributing

The Contributing guide covers the conventions worth knowing before you open a pull request: run the suite with magus run ci, back any performance change with benchmark evidence, and regenerate the docs site (magus run generate:rw docs) so the committed gen/ tree never drifts from its source.

Project graphs

One card per magus project in this repository, each linking to that project's runnable targets and run-order graph - the same content as its committed MAGUS.md, rendered here with the site's theming, search, and live Mermaid diagrams.

magus32 targets cmd/magus/starter7 targets console5 targets docs15 targets docs/guides/integrations/agents3 targets evals5 targets libs/diagnostics9 targets libs/gopherbuzz11 targets libs/textsearch6 targets proto3 targets

Workspace dependencies

The projects above in dependency order: each row runs after everything it depends on. Blast radius counts the projects a change here can reach, so it is the cost of touching that project.

project depends on blast radius
libs/gopherbuzz - 4
libs/textsearch - 3
docs/guides/integrations/agents - 2
magus libs/gopherbuzz 3
proto - 1
libs/diagnostics - 1
evals - 1
docs magus, docs/guides/integrations/agents, libs/gopherbuzz, libs/textsearch 1
console magus, libs/textsearch 1
cmd/magus/starter - 1
graph LR
    libs-gopherbuzz["libs/gopherbuzz"] --> magus["magus"]
    magus["magus"] --> docs["docs"]
    docs-guides-integrations-agents["docs/guides/integrations/agents"] --> docs["docs"]
    libs-gopherbuzz["libs/gopherbuzz"] --> docs["docs"]
    libs-textsearch["libs/textsearch"] --> docs["docs"]
    magus["magus"] --> console["console"]
    libs-textsearch["libs/textsearch"] --> console["console"]
Diagram source - renders with JavaScript enabled.

Reference

The deeper references a contributor reaches for once the build is running:

  • Conventions - the naming and layout rules magus expects of a workspace, and that this repository follows.
  • Operations - the work hierarchy underneath a target: ops, plans, and the slots that bound concurrency.
  • Configuration - the magus.yaml keys and the MAGUS_* environment inventory.
  • Diagnostic codes - the MGSxxxx wards, what each one catches, and how to author your own.
  • Debugging - dry runs, verbose output, and pry breakpoints for when a target misbehaves.
Glossary

Glossary

The vocabulary that runs through the rest of the docs. Each entry is a short definition; follow the link for the page that covers the term in depth. Every term has its own anchor, so you can deep-link a single definition (for example glossary/#output-reference).

Core model

Workspace

The magus root directory that owns a set of projects and shared config; the unit magus operates over. See workspace.

Project

A directory magus recognizes as a unit of work (it has a magusfile); the unit of caching, scheduling, and dependency tracking. See workspace.

Magusfile

The magusfile.buzz that declares a project's targets (as export funs) and binds its spells. See targets.

Target

A named operation (build, test, ...) you invoke with magus run <target>; it may compose a spell's tool-native operations and depend on other targets. See targets.

Operation

A single tool-native command a target composes; the middle of the work hierarchy (Spell to Operation to Target). See operations.

Spell

A language/runtime adapter (e.g. go, md) that maps generic targets onto a toolchain's real commands. See spells.

Charm

An execution modifier attached with : (lint:rw) that changes how a target runs, not which one; the built-in rw flips a check-only target to mutate in place, and ci always strips it. See charms.

Ward

A coded diagnostic that inspects a resolved op and nudges or blocks an anti-pattern before it runs. See wards.

Module

A magus stdlib namespace a magusfile imports for host capabilities: filesystem, exec, vcs, and more. See the module reference.

Buzz

The language magusfiles are written in (the .buzz engine). See engines.

Engine

The interpreter a magusfile runs on; magus embeds the Buzz engine. See engines.

Execution and caching

Cache

The content-addressed store magus consults before running a target, so unchanged work is skipped. See cache.

Affected

The set of projects touched by a change; magus affected <target> runs a target only over them. See affected.

Sandbox

The restricted filesystem and environment a target runs in, so builds stay reproducible and side-effect-free. See sandbox.

Service

A long-running or shared process magus manages across runs, distinct from a one-shot target. See services.

Daemon

The background magus host that owns shared state such as services and the warm knowledge graph. See daemon.

CI

An ordinary magusfile-defined target you compose yourself with magus\needs - magus does not hardcode its stages. Magus.RunCI treats it specially only in that it strips the rw charm, it is the anchor magus affected ci keys off, and a selected scope with no project declaring it is a load error rather than a silent no-op. See targets.

Output reference

A short, shareable id (ref1a2b3c, "ref" for short) for one target execution's captured output; it appears on each target's line, and magus query output ref1a2b3c prints those exact bytes. In OpenTelemetry terms it corresponds to a span (one target execution) within its trace (the whole magus invocation). See output-refs.

Trace

OpenTelemetry's name for one whole magus invocation; every target it runs is a span beneath it. See telemetry.

Span

OpenTelemetry's name for one unit of work under a trace - a target execution, whose sub-operations are child spans. An output reference points at a span's captured output. See telemetry.

Pool

The concurrency pool: the shared set of slots that caps how many targets run in parallel on one machine. Its capacity defaults to MAGUS_CONCURRENCY, then 4 on GitHub-hosted runners, then min(NumCPU, 8); magus status and the dashboard report it live. See daemon.

Slot

One unit of the pool's capacity. A target acquires the slots it needs to run (most take one) and releases them when it finishes; the pool tracks capacity (total slots), running (acquired), and queued (blocked). See daemon.

Concurrency

How many targets run at once. It is bounded by the pool's capacity and set with --concurrency, MAGUS_CONCURRENCY, or the concurrency config key. See daemon.

Queued

A target that wants a slot while the pool is full; it blocks first-in-first-out until a slot frees. The dashboard colors a sample with queued > 0 accordingly. See daemon.

Pool mode

Which pool a run uses: daemon (one shared pool the background daemon owns across every workspace and client) or proc (a per-process pool for a single one-off invocation). See daemon.

One-off

A single magus invocation that runs a target and exits, using a per-process pool; the opposite of the long-lived daemon or a service. See daemon.

Remote cache

A CI-only backend that shares content-addressed artifacts across runners: a cold machine replays a build another runner already did instead of rebuilding. Every remote artifact must be signed by a trusted key. See remote-cache.

Snapshot

A point-in-time view of live state - the pool's occupancy or a tick of exported metrics - as opposed to accumulated history. See daemon.

Backfill

The recent history the daemon replays to a dashboard on connect, so its charts start populated instead of empty. It is served from a bounded ring buffer of the last few hundred samples. See daemon.

Telemetry and health

Latency

How long an operation takes. magus records latency as OpenTelemetry histograms per family - target execution, cache op, pool wait, and graph query - and reports each as a count, sum, and percentiles. See telemetry.

Percentile

A latency value at a given rank, interpolated from a histogram's buckets: p50 is the median, p95 and p99 are the tail that most latency budgets care about. See telemetry.

Health

The at-a-glance daemon state derived from the pool: healthy when the pool is reporting, degraded when it reports an error, down when there is no pool. The dashboard color-codes each state. See daemon.

Volatility

A target that fails once and passes on rerun is volatile, as opposed to a regression that started failing and stays failing. magus keeps per-target pass/fail history and a Wilson-score volatility rate to tell them apart and auto-retry the noise. See volatility.

Insight and knowledge

Knowledge graph

The queryable graph of a workspace's spells, targets, docs, and code relationships; query it with magus query/explain/path. See knowledge.

MAGUS.md

The committed routing index at a workspace root, regenerated from the knowledge graph: it lists every node and points at the exact query for a given question, so it is the entry point an agent reads first. See knowledge.

Insight

The reports magus derives over the graph and history (hotspots, affinity, ownership, trend). See insight.

Hotspot

An insight lens: edit frequency times complexity, the prime refactoring targets. The project view heat-colours the dependency graph by churn; --files ranks individual files. See insight.

Affinity

An insight lens: projects that change together (temporal coupling). A pair that co-changes without either declaring a dependency on the other is a candidate architectural smell. See insight.

Ownership

An insight lens: author concentration - the primary author and their share, the distinct-author count (the bus factor), and abandonment. See insight.

Trend

An insight lens: the recent half of the window against the earlier half. A positive delta is a rising hotspot; a negative one is cooling. See insight.

Diagnostic code

A stable MGSxxxx identifier attached to a magus warning or error, so it can be referenced and looked up; some are guardrails (see wards), others hard errors.

Console

The vocabulary of the browser app. These terms name things you only meet in the console's UI, so they are defined here rather than left to be inferred from it.

Console

The browser app that reads a magus workspace: a tabbed, tiling page hosting the log viewer, graph explorer, dashboard, and activity trail. It is a separate static app, not something the daemon serves - the daemon exposes a loopback API it calls: read-only views plus one bearer-gated job-control service for maintenance jobs. See reference/console.

Surface

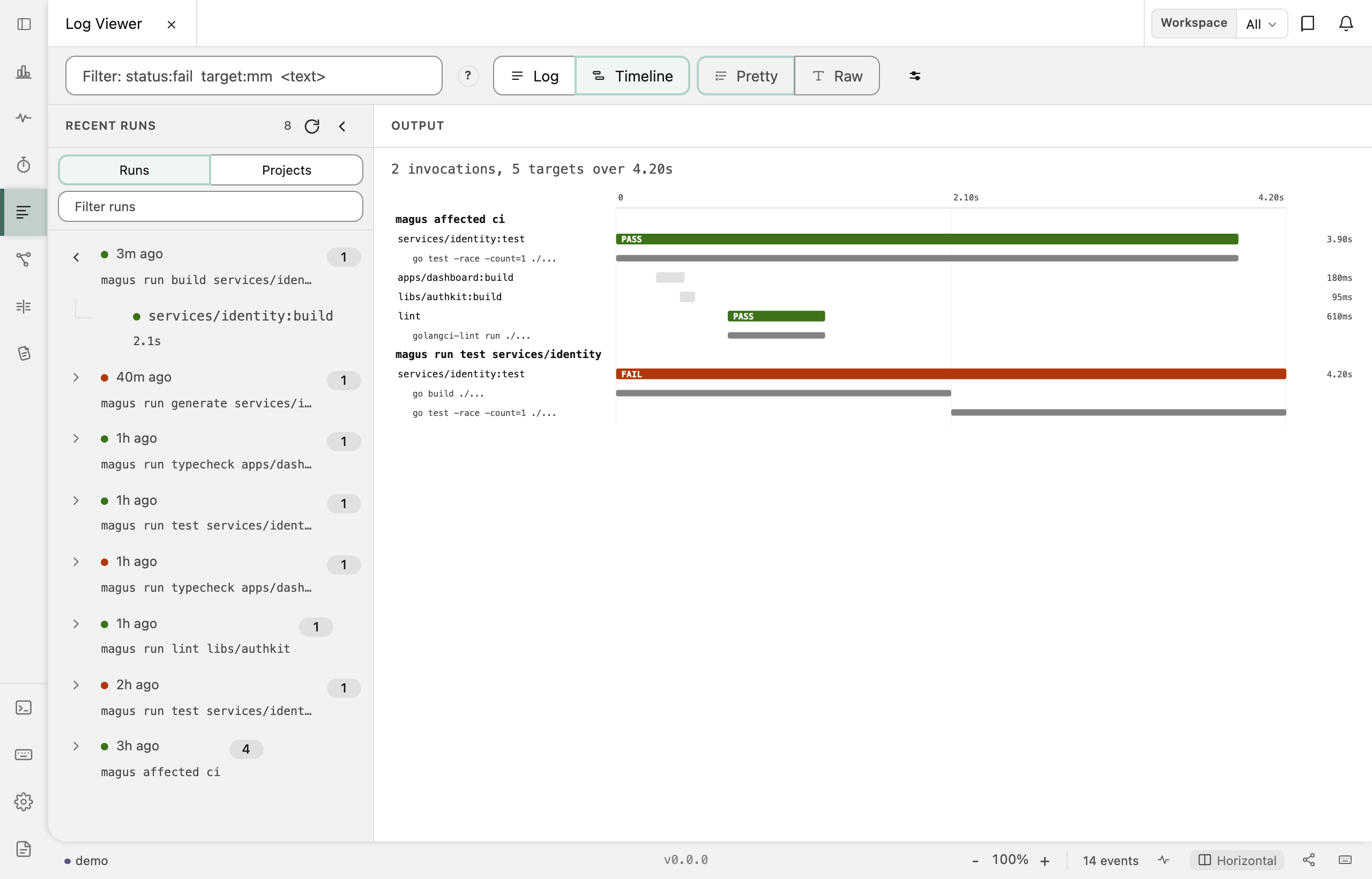

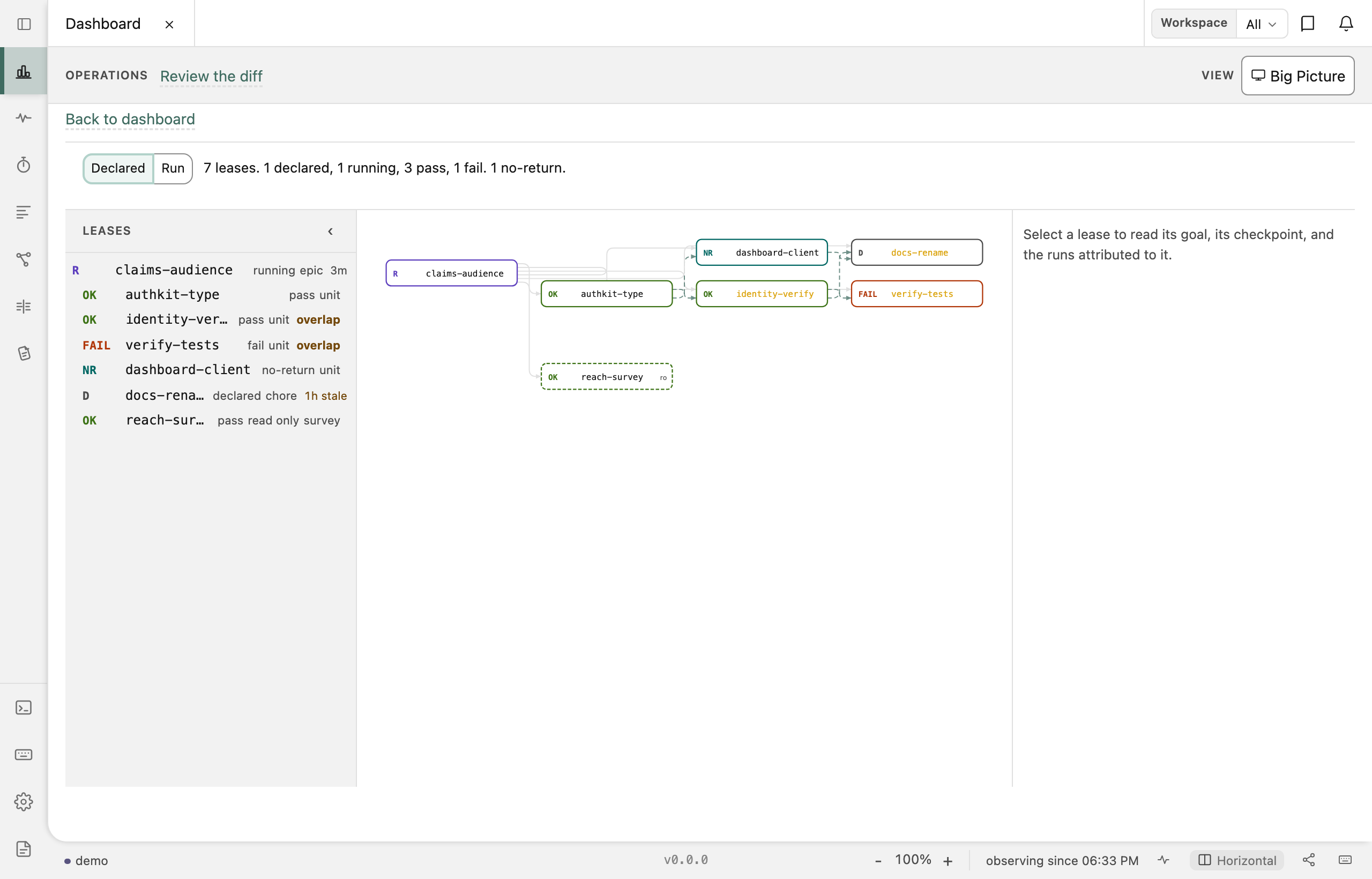

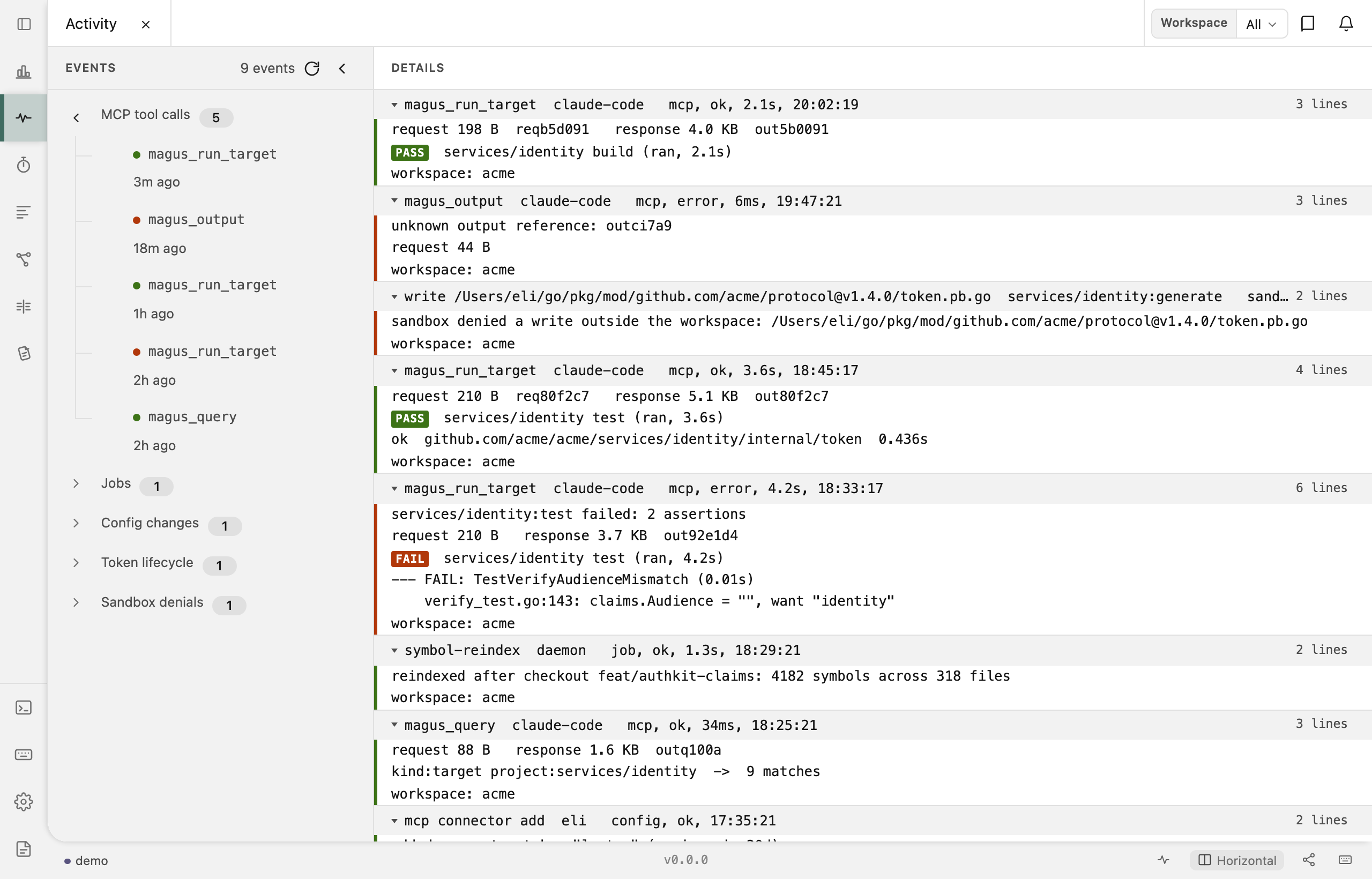

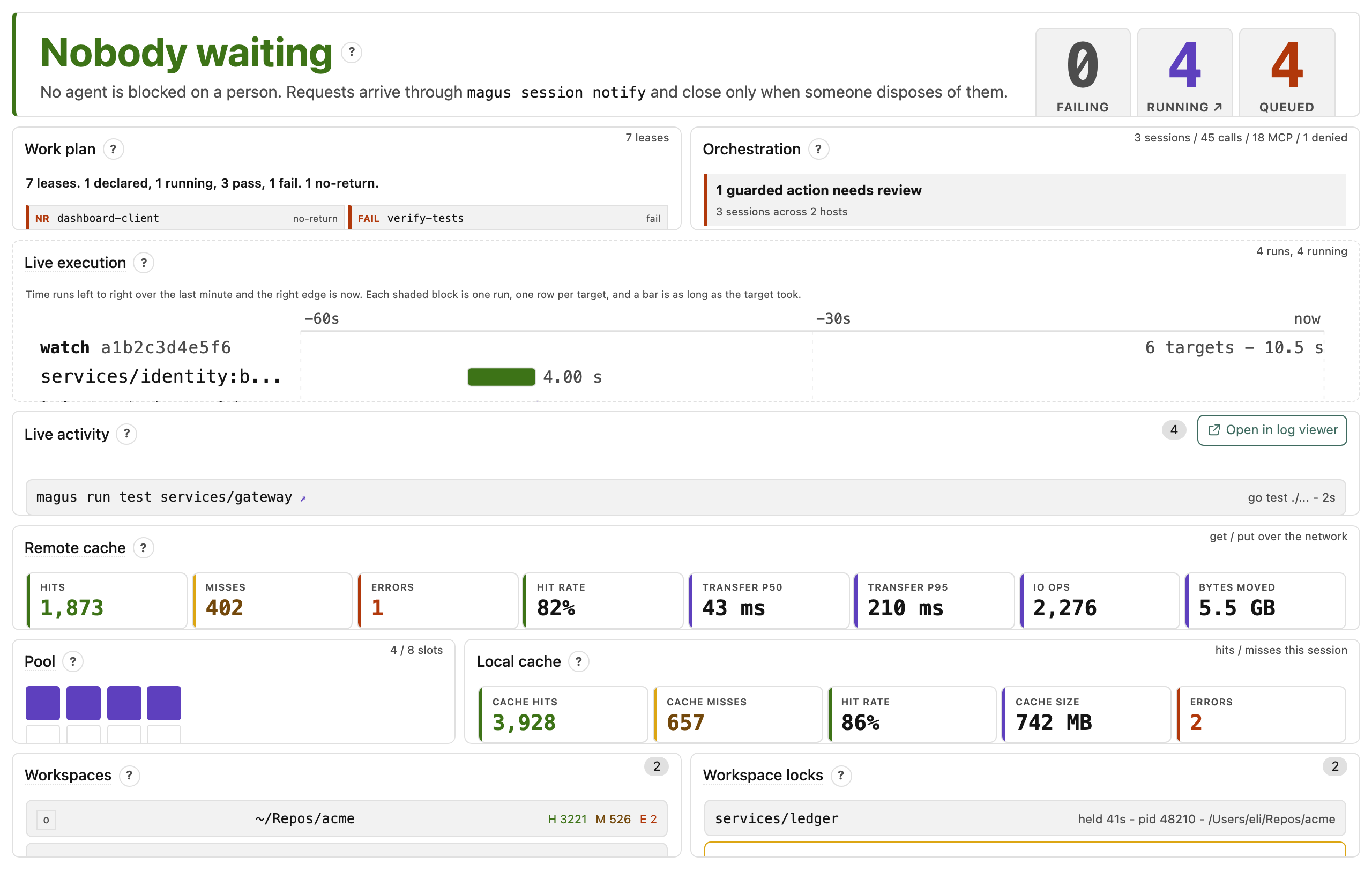

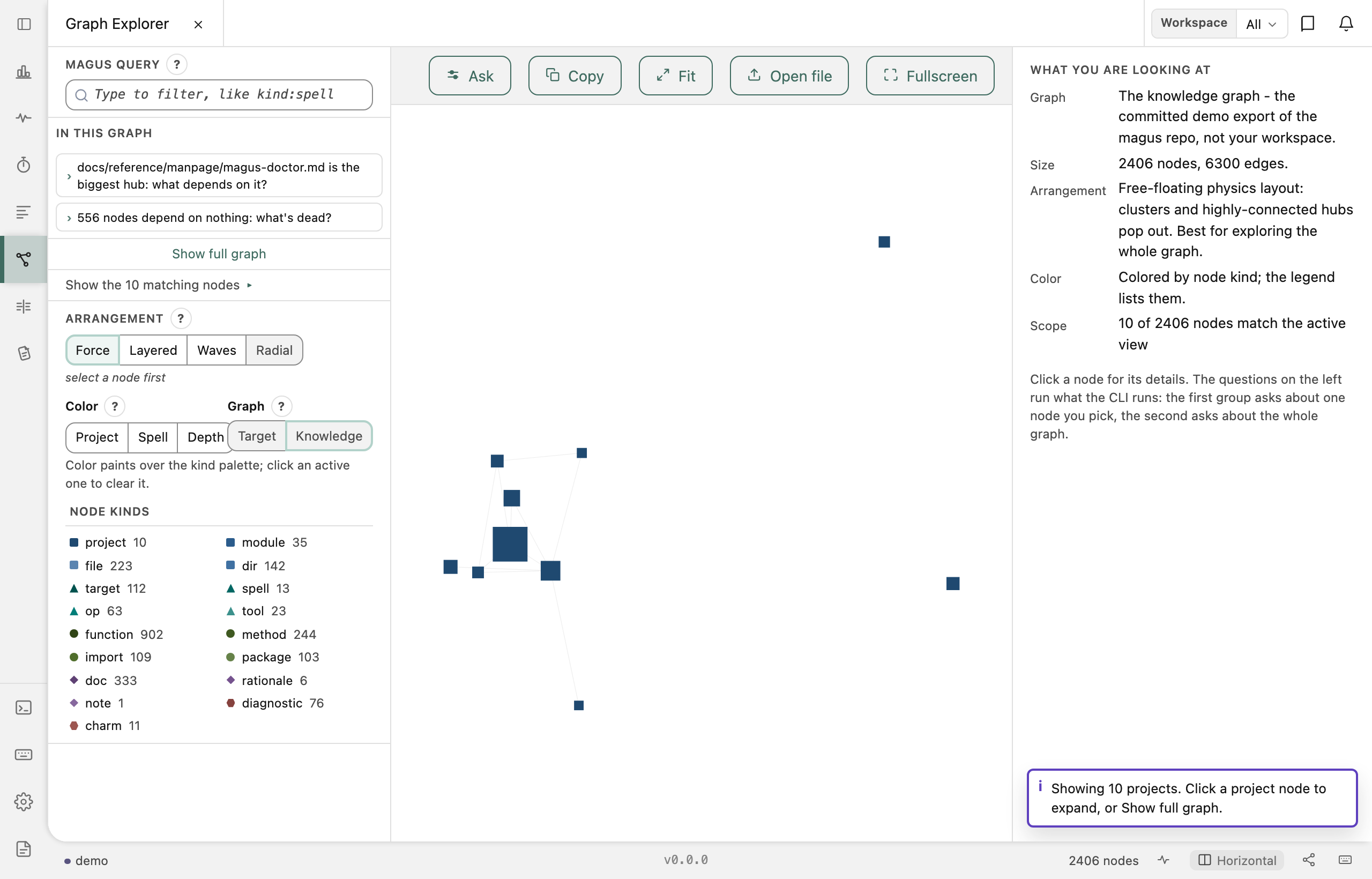

One of the console's apps (Log Viewer, Graph Explorer, Dashboard, Activity Trail, Settings). "Surface" rather than "page" because one is never a document you navigate to: it is mounted into a tab, or into a pane beside another one. Each is single-instance - opening one you already have focuses it instead of duplicating it. See reference/console.

Pane

A split within a tab. Splitting divides the focused pane along its longer side, so the same action tiles side-by-side on a desktop and stacks on a phone; a tab with no split is a single pane. Drag the divider to re-weight the split. See reference/console.

Chord

A key combination bound to a console command, written mod+k - where mod is Cmd on macOS and Ctrl elsewhere, so one binding fits both. Every chord is rebindable (Settings > Keybindings), and a command remains reachable from the command bar whether or not it has one. See reference/console.

Command bar

The console's runner: one searchable list of every command and its chord, opened with mod+k. It is the discoverable route to any action - the menus and chords dispatch the same commands it does. See reference/console.

The URL that points a surface at a running daemon. The daemon serves the console from its own loopback origin, so the link is that origin plus the surface path and a bearer token in the fragment (http://127.0.0.1:7391/console/graph/#token=...). The daemon prints it; the console consumes the token, stores it, and strips it from the URL, so the secret never lingers in history or a copied link. The origin must be literal loopback - localhost and hostnames are rejected before any request. Without one, a surface reads only what rides in the link itself. See reference/console.

See also

Conventions

Documentation conventions

A few conventions run through every page on this site. This page is the key.

Placeholders

Angle brackets mark a value you replace with your own - never type the brackets:

magus run <target>
magus completion <shell>    # e.g. bash, zsh, fish

<target>, <path>, <shell>, <name> and the like are stand-ins, not literal text.

Command synopsis notation

Every synopsis on this site and in magus <verb> -h and the manpages uses the same five marks. This is the whole vocabulary:

notation means example
<value> required; replace it magus run <target>
[thing] optional; omit the brackets if you use it magus ls [flags]
<a|b|c> required, and one of these exact words magus completion <bash|zsh|fish|powershell>
<value>... repeatable; one or more, space separated magus describe file <path> [<path>...]
word[s] the s is optional - both spellings work magus describe spell[s]

The last one is the only place square brackets do NOT mean "optional argument": spell[s] means magus describe spell and magus describe spells are the same command, not that s is a separate thing you can pass.

Combining them reads left to right, so [<path>...] is "optional, and if you give it, one or more paths":

magus run <target> [flags] [project...]
magus describe file <path> [<path>...] [flags]

[flags] and [args] are categories rather than placeholders - there is nothing called "flags" to substitute. Run the command with -h to see which it accepts.

A bare -- ends magus's own arguments; everything after it is passed through untouched to whatever the target runs:

magus run test libs/foo -- -run TestX

Values are written --flag <value> in synopses, but every magus flag also accepts --flag=<value>, -flag <value> and -flag=<value>. Pick whichever reads better; they parse identically.

Some flags take a comma-separated list, which is written as one value. Spaces around the commas are trimmed and empty entries are ignored:

magus status --probe=mcp,liveness

A few take a structured value spelled key=<value> pairs, comma separated. Where a pattern is accepted it is always the same three types:

magus watch --ignore type=glob,pattern='**/node_modules/**'
magus where --filter type=regex,pattern='^libs/'

Shell commands

Command blocks omit the shell prompt - copy the whole block as-is, no leading $ or > to strip. A # comment on or after a line shows expected output or an aside:

magus version
# magus 0.4.2

Windows examples are shown in PowerShell and labelled as such.

Runnable examples

Some Buzz code blocks are live: a Run button appears in the corner and executes the snippet in the in-browser playground via WebAssembly - no install needed. Blocks without the button are illustrative only. (With JavaScript off, every block is plain, copyable text.)

Admonitions

Call-outs are rendered from GitHub-style alert blockquotes and carry a colored accent per type:

Note

Context worth knowing, but not a warning.

Warning

Something that can bite you if ignored.

The types are NOTE, TIP, IMPORTANT, WARNING, and CAUTION.

Footnotes

An aside that would break the flow inline is written as a footnote: a bracketed superscript like this1 links to a short note at the foot of the page, which links back. The generated module reference uses them to flag methods that also exist in Buzz's own standard library without cluttering each signature.

Reach for a footnote when a sentence needs a source, a caveat, or a pointer that would derail it inline: a citation or external reference, an edge case that qualifies the claim, or a "see also" that is worth keeping but not worth interrupting the thought. Prefer a footnote over a parenthetical that runs long, and over dropping the detail entirely.

Code-block titles

A fenced block can carry a filename or label in a small caption bar above it, so you know which file a snippet belongs in (for example a magusfile.buzz).

Diffs

A ```diff block shows a change: added lines (leading +) render as a green band, removed lines (leading -) as a red one.

 export fun ci(ctx: magus\Context, args: [str]) > void {
-    ctx.needs(lint);
+    ctx.needs(lint, test);
 }

Auto-generated pages

Pages built from source - the module reference, the spell reference, the man pages, and the configuration reference - carry an auto-generated chip. Edit the generator, not the page; a hand edit is overwritten on the next build.

Reading time

Longer pages show an estimated reading time near the top. It is a word count of the source, not a tracker - nothing is measured about you.

  1. Authored as text[^label] in the prose, with a matching [^label]: note line anywhere in the file. ↩︎
